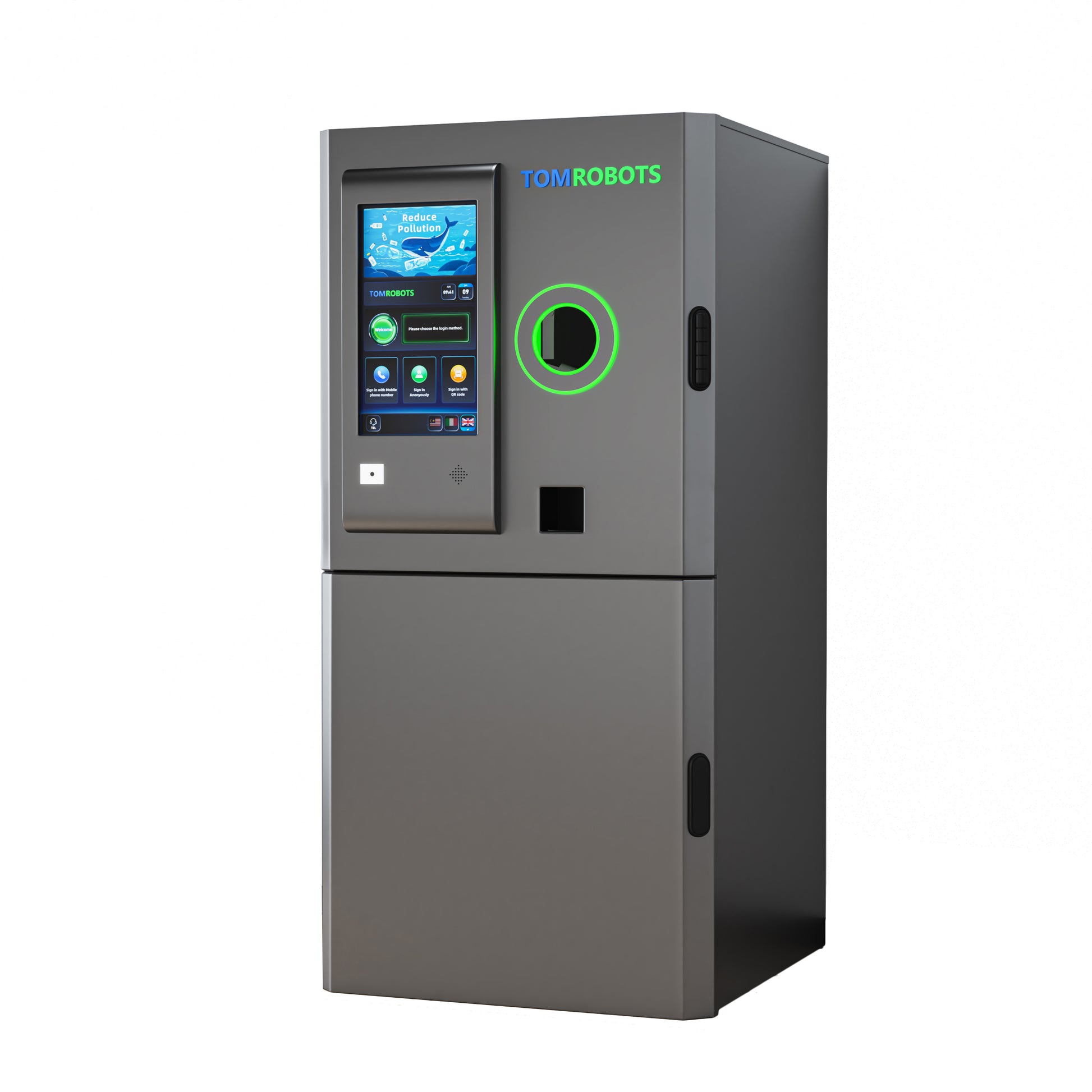

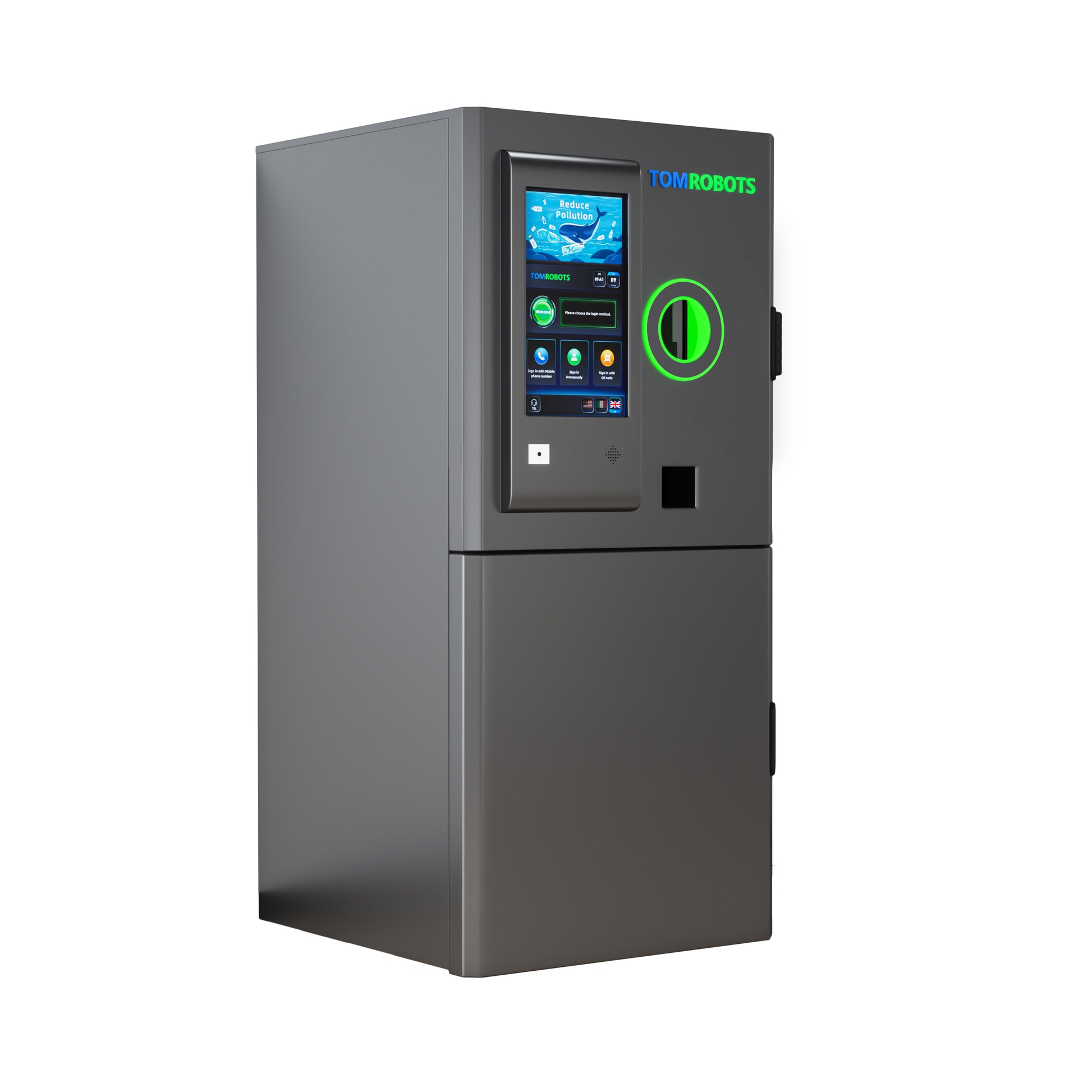

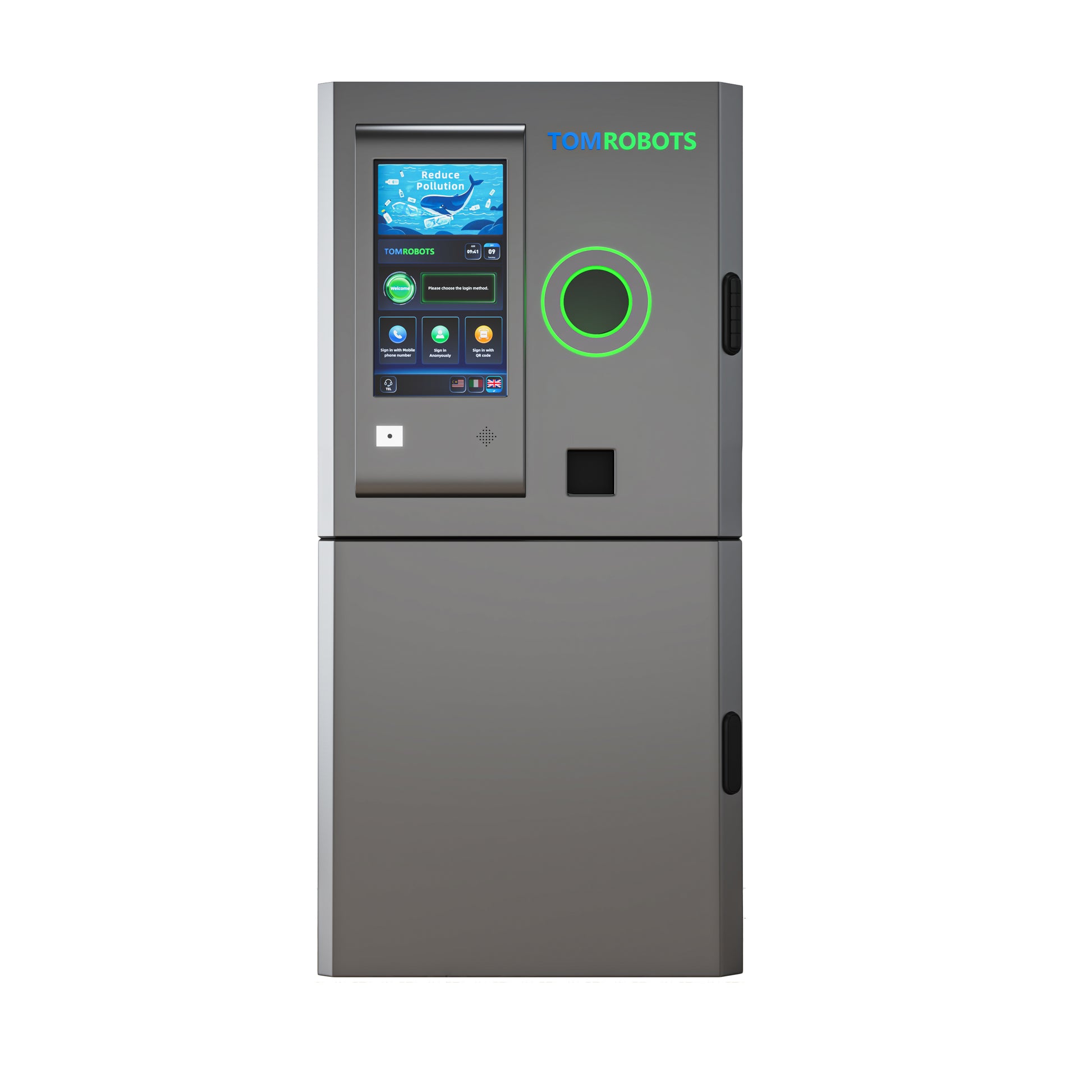

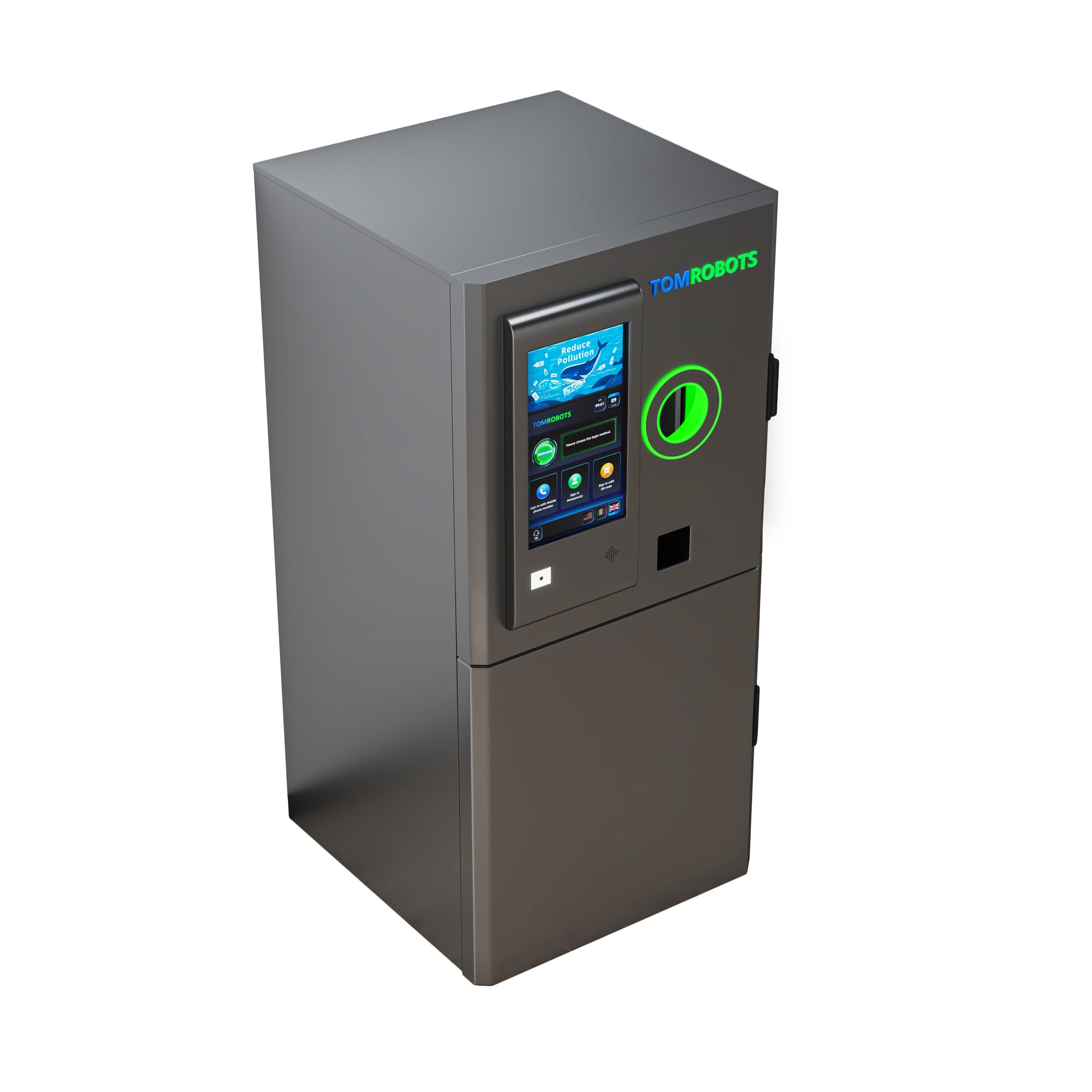

Reverse vending machine Model: L88 Indoor Use

  • 1) One entrance for PET and CAN
  • 2) Adanced sorter system to put PET and Can into different Bin
  • 3) Weight sensor, Water bottles with liquid will be rejected
  • 4) Scan QR code of user mobile app to identify user to login
  • 5) Automatic alert via APP once the machineis almost full
  • 5) 4G network
  • 7) Location on Map
Product description

Reverse Vending Machine Model: L88 Features Overview:


1.AI Visual Recognition System

· Intelligent Object Detection: Accurately identifies the shape, size, and material of PET bottles and aluminum cans through deep learning algorithms.

· Detail Discrimination: Automatically distinguishes between PET bottles with or without lids to adapt to different recycling scenarios.

· Autonomous Learning: Trained with massive data, the system can independently learn new container types and continuously optimize recognition efficiency.

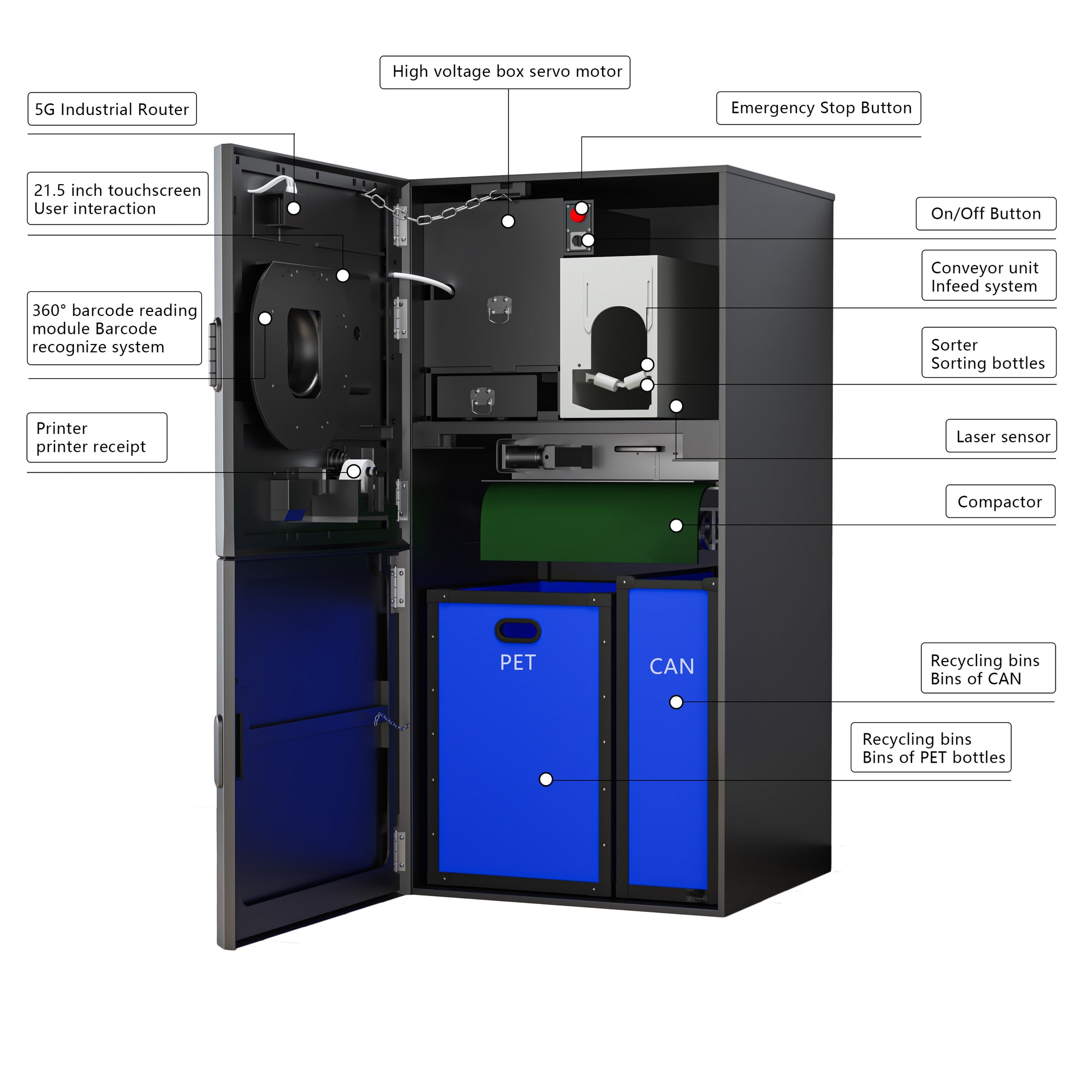

2.Industrial-Grade Sorting and Compression System

· High-Speed Sorting Mechanism:

· Equipped with ultra-high-speed servo motors, operating 50cm in 0.2 seconds, supporting 24-hour continuous fault-free operation;

· Wide-temperature adaptability (-20℃~80℃), stable operation in extreme cold or heat.

· Precision Compression Device:

· Compressor processed by CNC technology, reducing container volume by over 70%;

· Driven by a planetary gearbox with strong torque, supporting efficient compaction of PET bottles and aluminum cans.

3.360° Omnidirectional Scanning System

· Up to 10 sets of surrounding high-speed barcode readers, reading container barcodes in milliseconds, supporting multi-angle omnidirectional scanning, and adapting to mainstream European recycling label standards.

· support additional reading of data matrix codes.

4.Multilingual Interactive Interface

· Supports over 20 major European languages, including:

a. English

b. Spanish

c. French

d. German

e. Italian

f. Dutch

g. Swedish

h. Danish

i. Norwegian

j. Finnish

k. Greek

l. Hebrew

m. Turkish

n. Polish

o. Czech

p. Hungarian

q. Portuguese

r. Russian

s. Arabic

t. Korean (Note: Korean is not a European language, listed as per the original text)

5.Intelligent Safety Detection Module

· Load Cell: Real-time detection of liquid residue in containers, automatically returning containers with liquid to avoid contaminating the recycling process.

6.· Three-Color Indicator Guidance:
✅ Green: Container input allowed
�� Blue: Barcode reading successful
❌ Red: Container does not meet recycling standards (automatically returned)

7.End-to-End Data Management

· Localized backend system: Database deployed within Europe, compliant with GDPR data security regulations, eliminating cross-border data leakage risks;

· High availability of the main backend system to guarantee smooth 24/7 operation.

· VPN communication between RVM and main backend.

· Open API interface: Supports seamless docking with third-party recycling management systems and payment platforms for data synchronization and business integration.



8.Customizable Expansion Functions

· Integrated payment terminal: Supports multiple payment methods such as credit cards, mobile payments (e.g., Apple Pay, Google Pay), and deposit refunds;

· Receipt printing function: Automatically generates recycling vouchers including container type, quantity, points/amount, etc., for user reconciliation.

9.European Market Adaptation Advantages

· Compliance Certification: CE certified, meeting EU mechanical safety standards;

· Recycling System Compatibility: Supports European deposit return systems;

· Durable Design: All-metal body + anti-corrosion coating.

10.Application Scenarios

Supermarkets, convenience stores, gas stations, shopping malls, community recycling stations, and other public places to help improve the recycling rate of beverage containers in Europe.

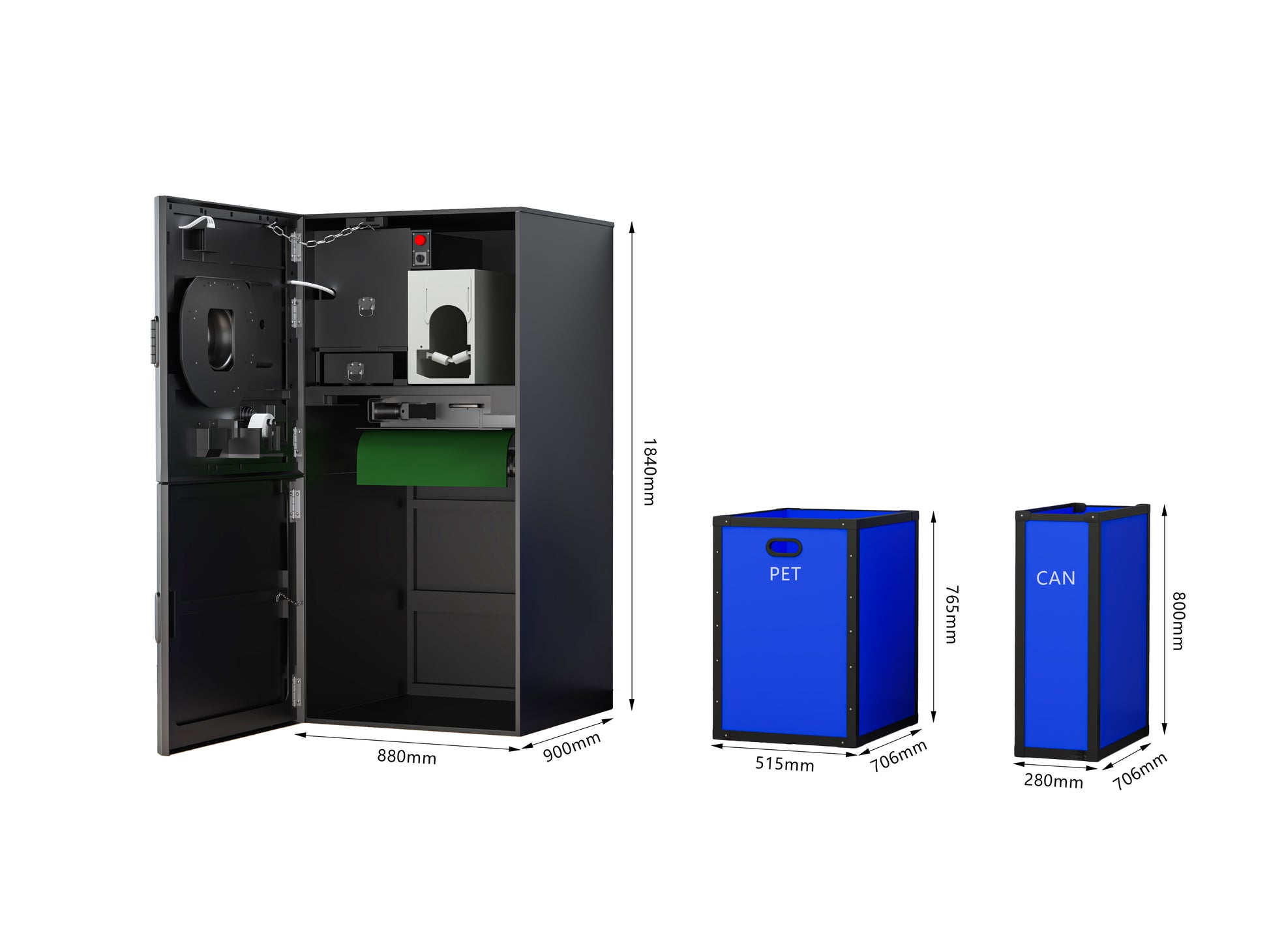

Specifications

Dimension:


Display:
21.5 inch touch screen
Power supply:
220-240V, 5A single phase
Power consumption:
60W
Operating:
120-200W
Environment:
For indoor use.
Temperature:
-15~65°C.
Relative humidity:
Max 90% - non-condensing.
Thermal printer:
for text, logos ,barcodes, coupon
